Special assemblies
Copper assemblies with special connectors, from industrial RJ45 to RJ11, RJ12 and handset plugs, Ensam 315 and Bulgin IP68 connectors, built to your drawing.
Industrial RJ45RJ11, RJ12, RJ22Ensam 315, Bulgin IP68
Copper
Specifications
| Industrial RJ45 (8P8C) | 8 positions, 8 contacts. Cat5e, Cat6 and higher. Metal shielding, locking and IP67 or IP68 housing options |
|---|---|
| RJ11 / RJ12 (6P4C / 6P6C) | 6-position body with 4 or 6 contacts, for legacy serial, modem, PLC programming and telecom links |
| RJ9 / RJ10 / RJ22 (4P4C) | 4-position, 4-contact plug for handsets, headsets, pendants and test equipment |
| Ensam 315 | Ensam 315 assembly solutions built to specification |
| Bulgin | Bulgin IP68 rated assembly solutions for wet and exposed environments |
| Cable options | Shielded and unshielded, solid and stranded |
| Service | Bespoke build to customer drawing or sample |
Key benefits
- Built to your drawing or sample.
- Shielded industrial RJ45 options for EMI and RFI protection.
- IP67 and IP68 options for wet and exposed environments.
- Legacy RJ11, RJ12 and handset assemblies still made to order.

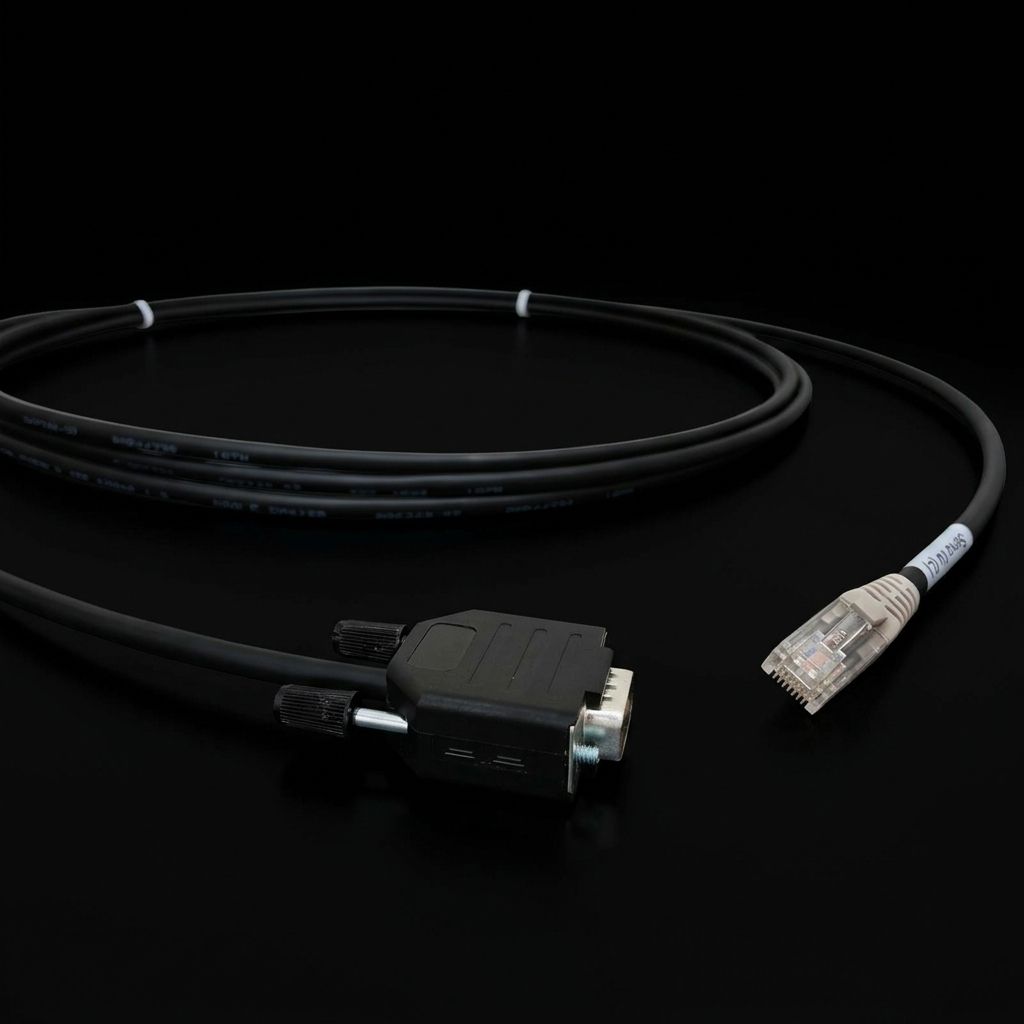

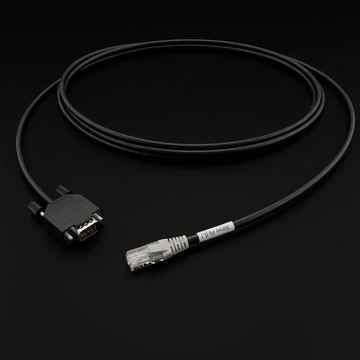

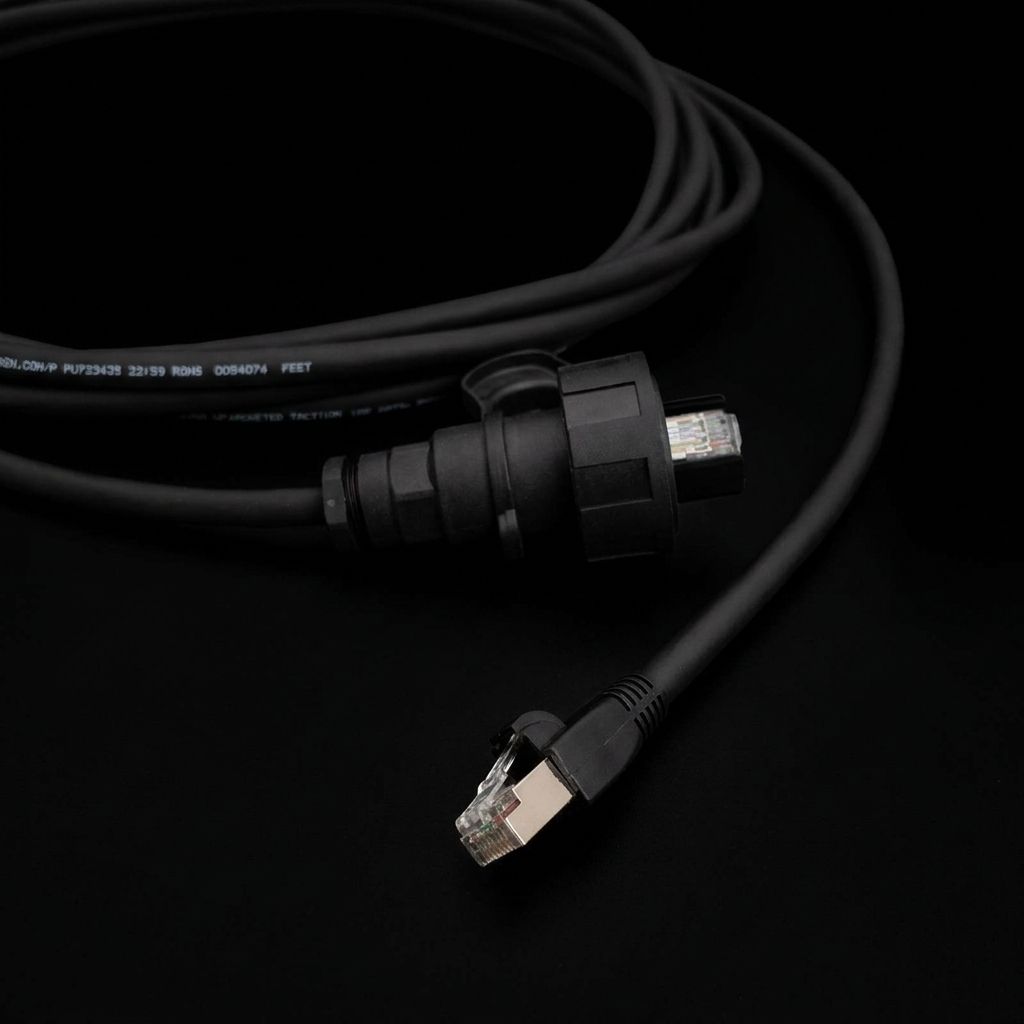

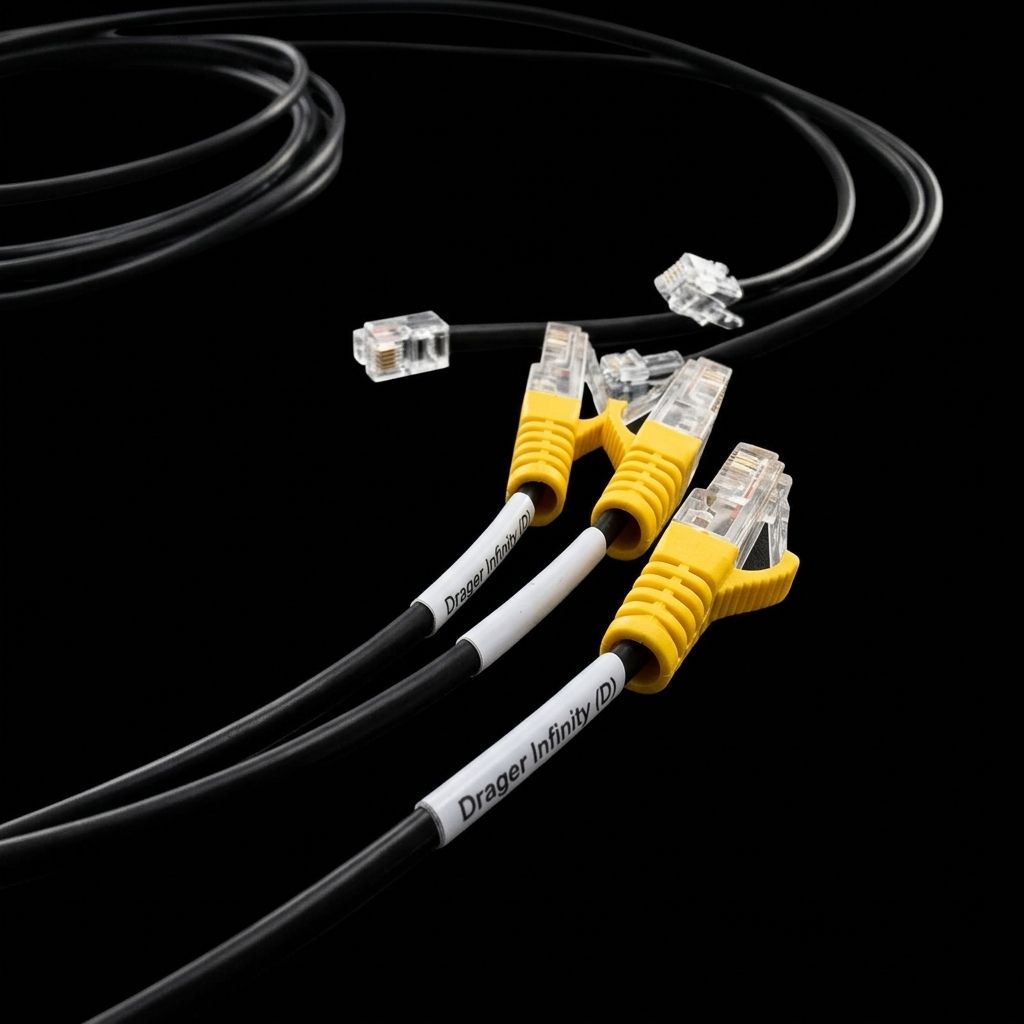

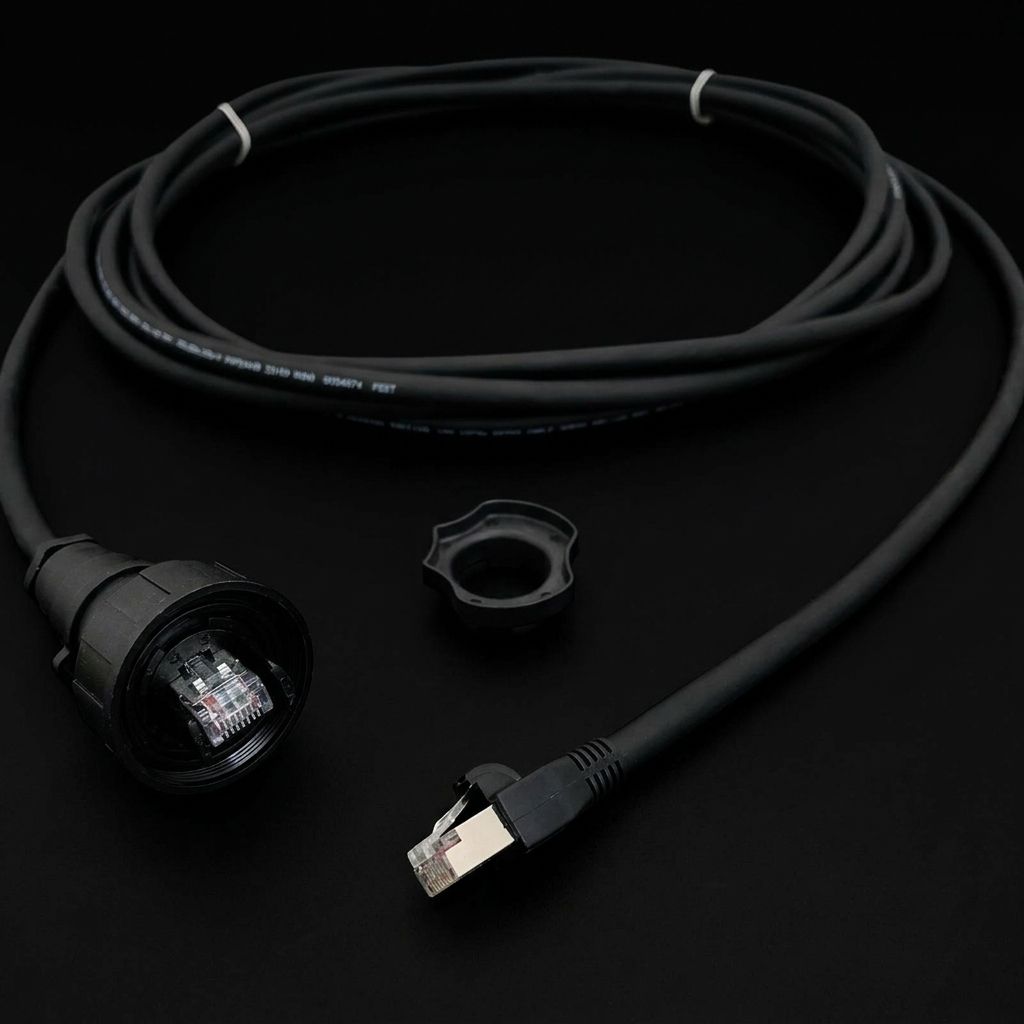

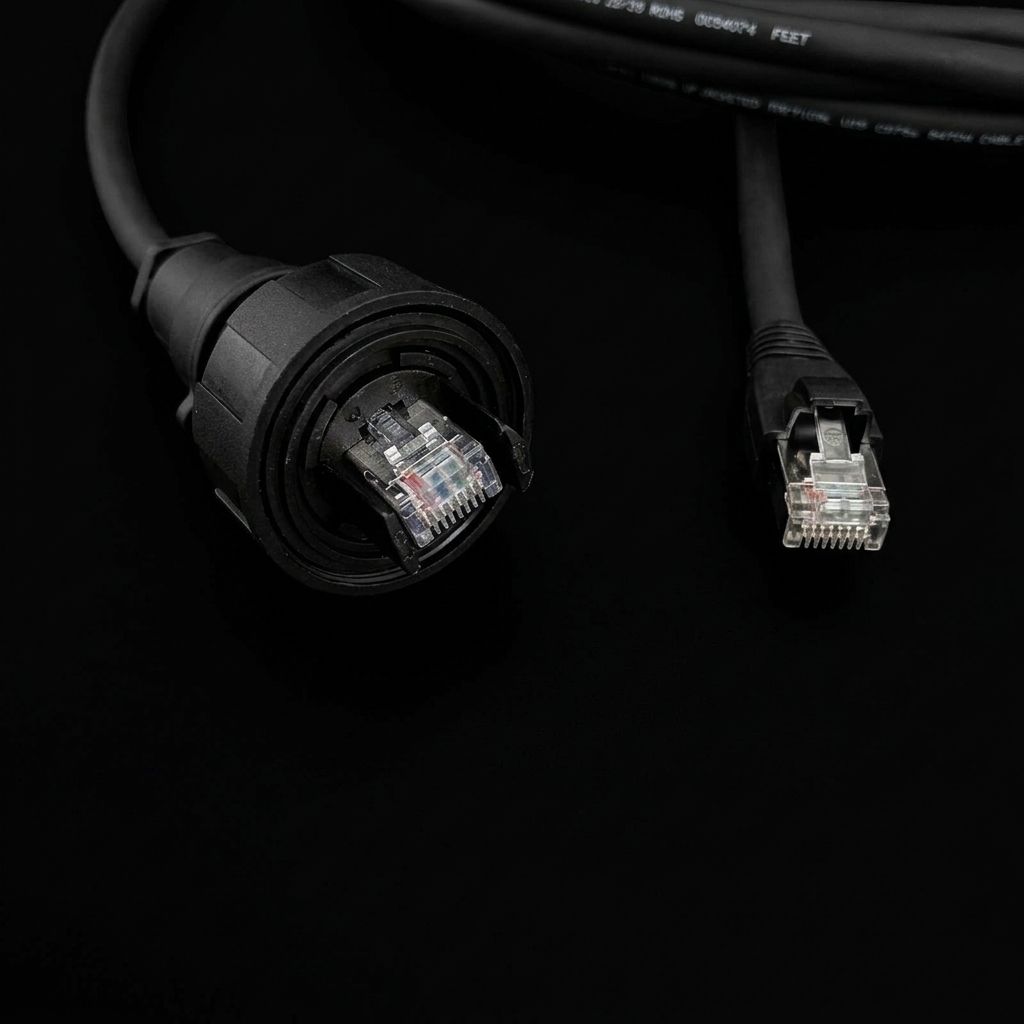

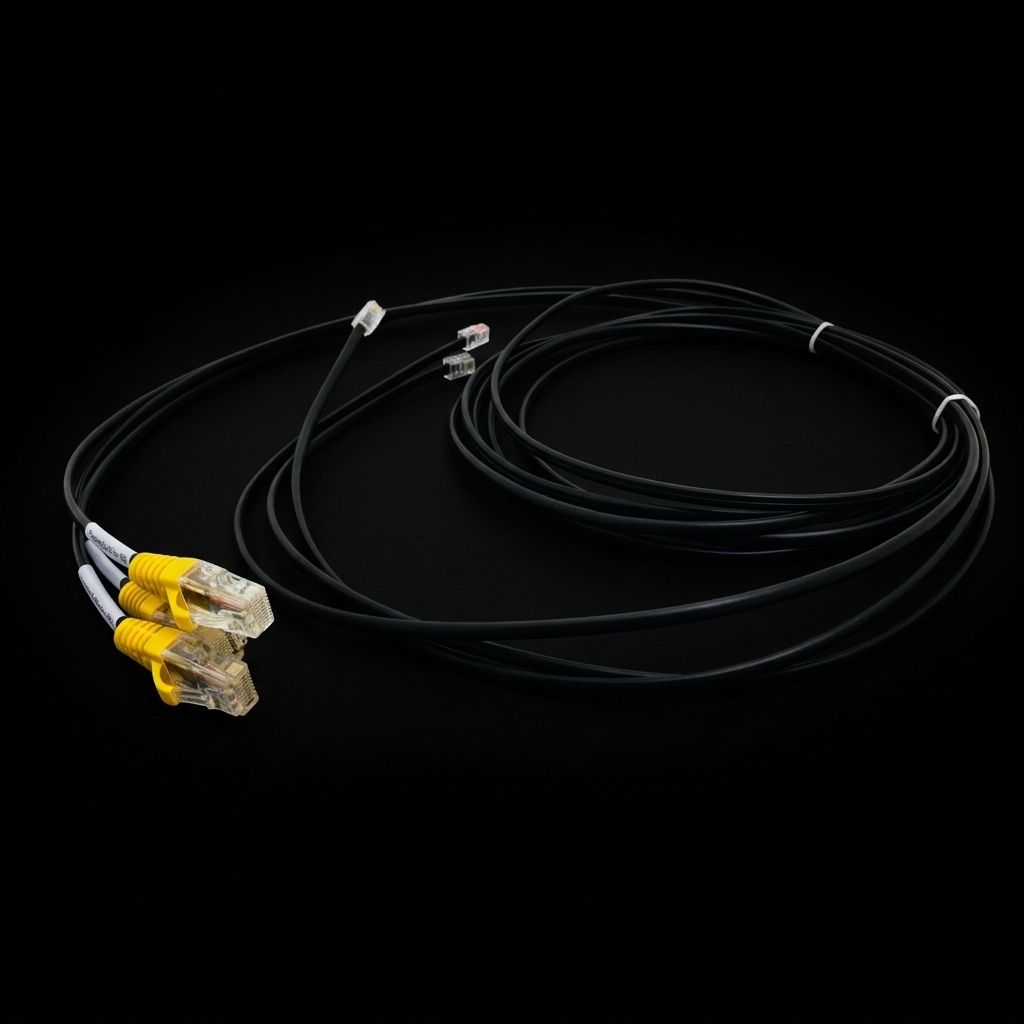

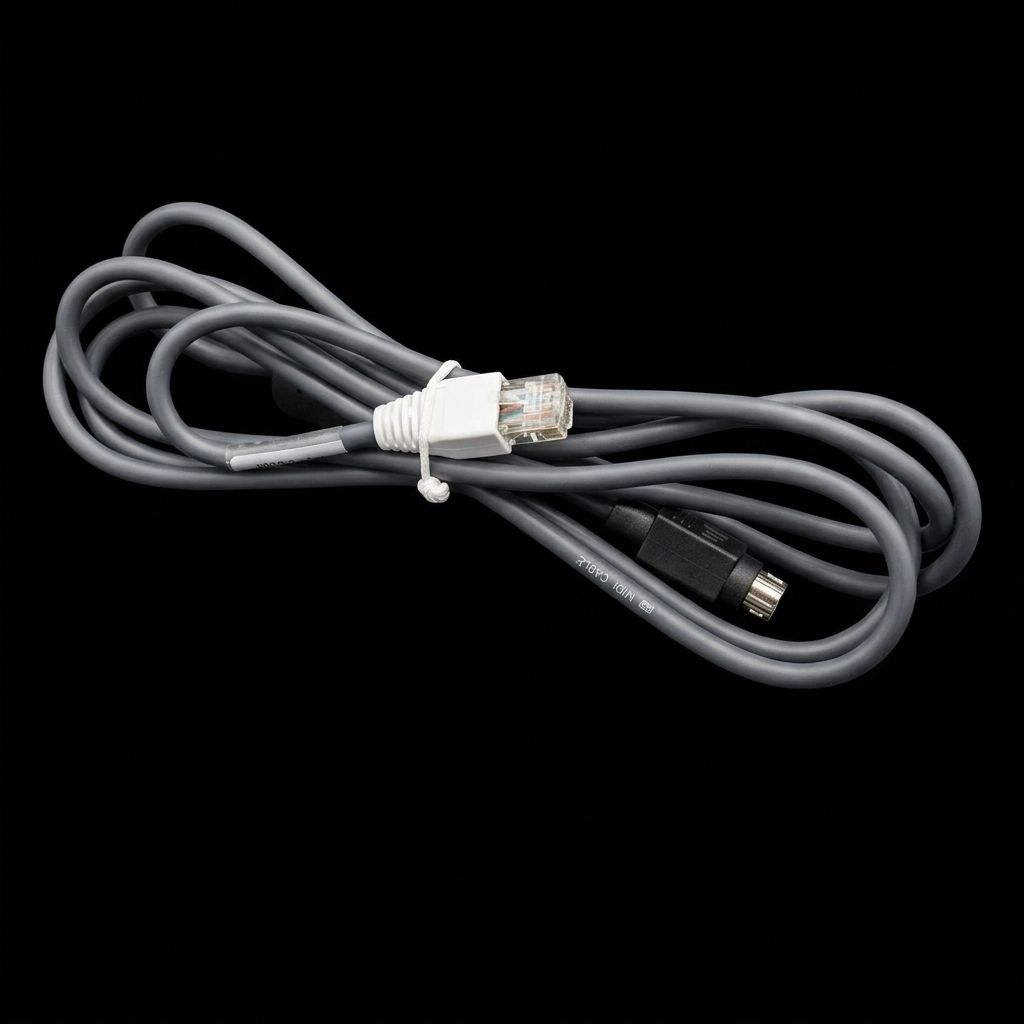

Photos

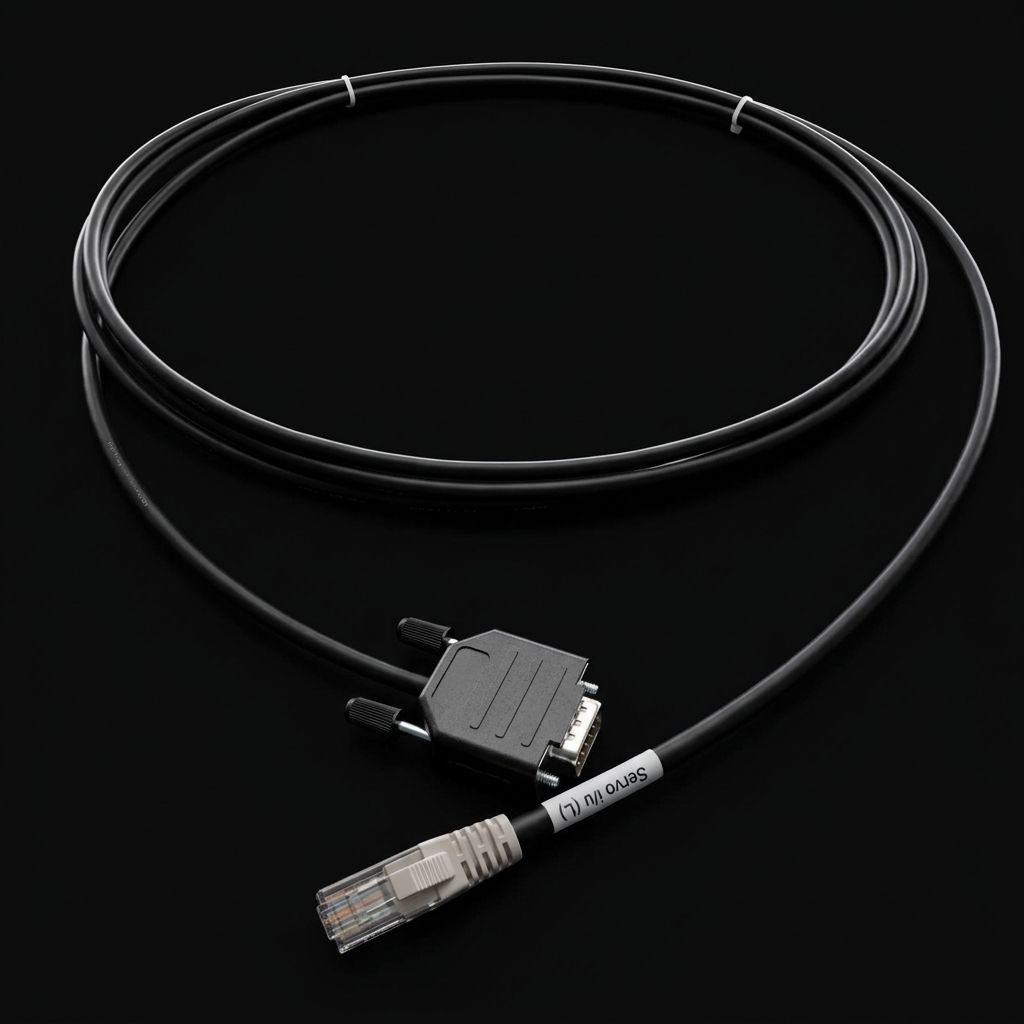

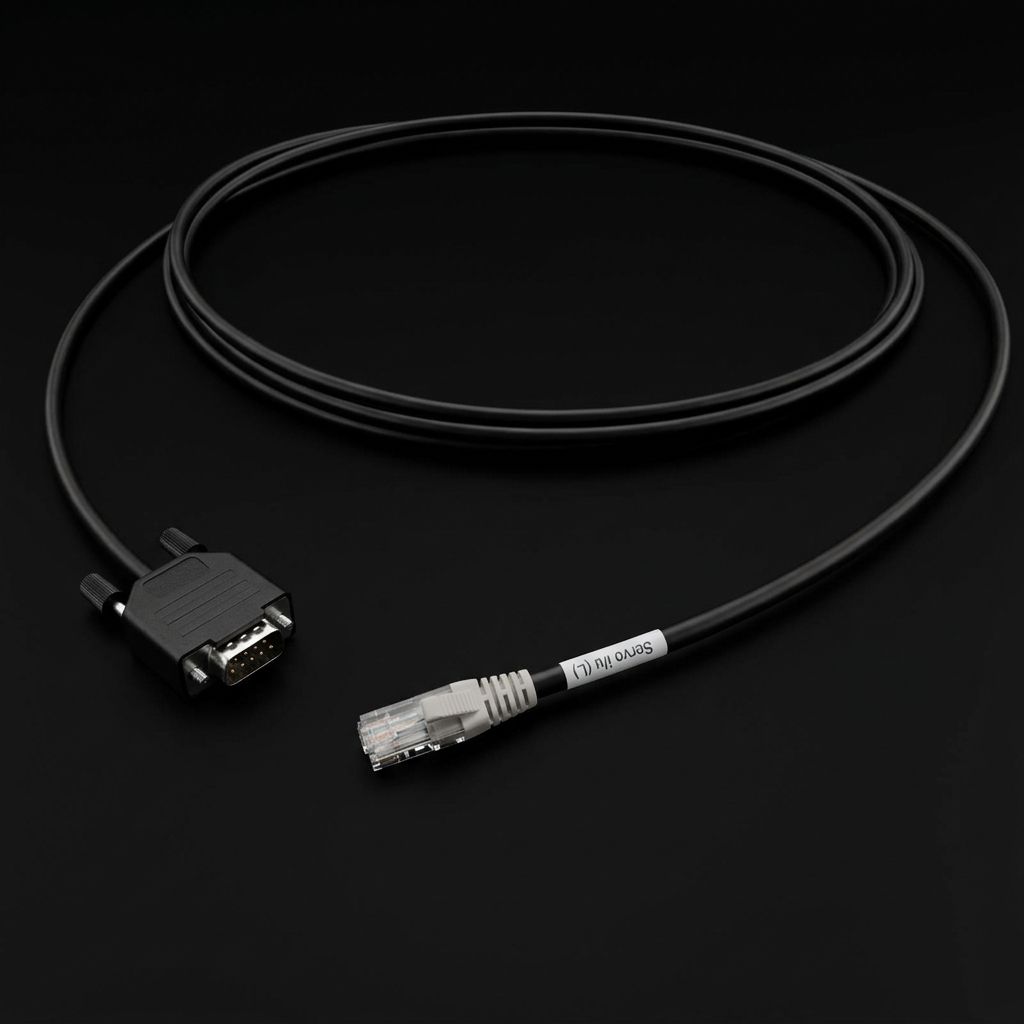

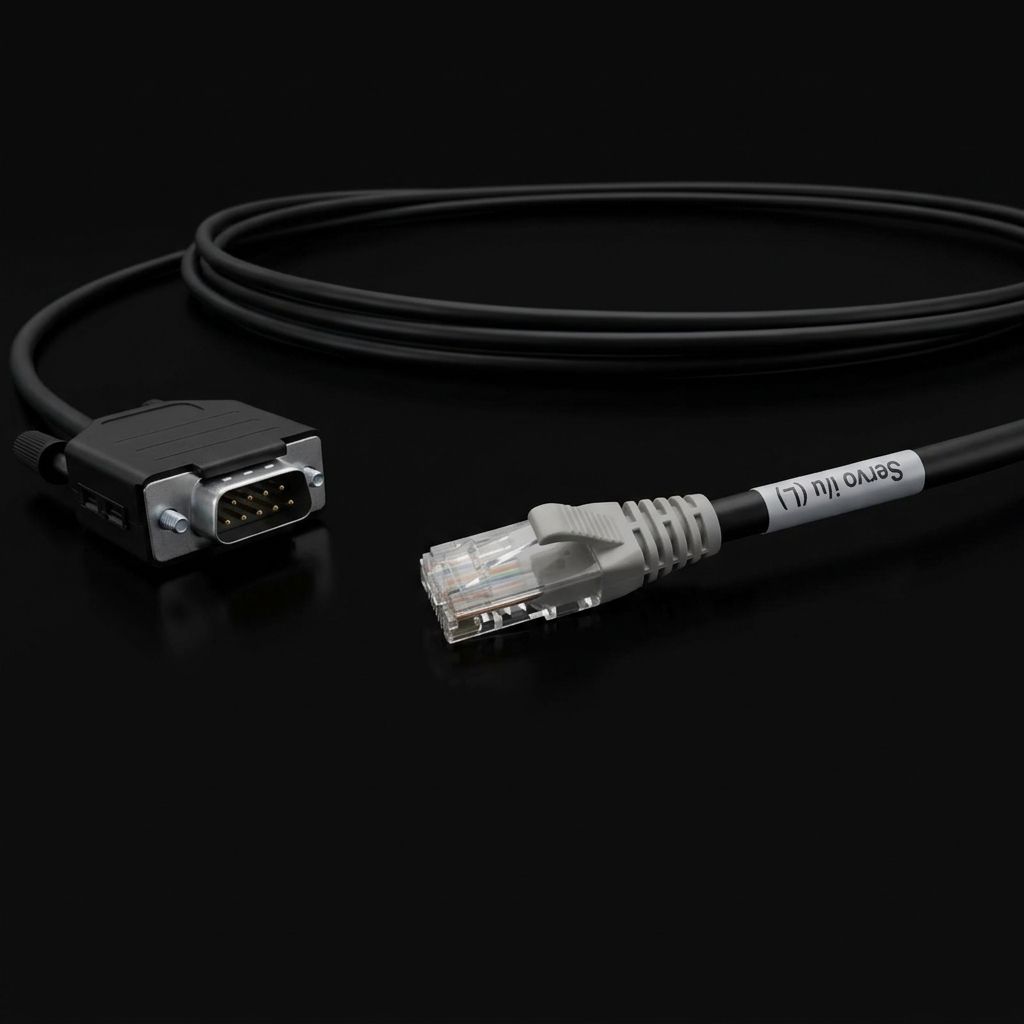

Where a standard patch lead will not do, we build to the connector system your application demands. Supply the drawing or the sample and we will quote the assembly.
Industrial RJ45 (8P8C)
For industrial Ethernet, PLC communication, SCADA systems and device networking. Eight positions and eight contacts, supporting Cat5e, Cat6 and higher. Industrial options include metal shielding for EMI and RFI protection, vibration-resistant locking such as push-pull or bayonet, and heavy-duty IP67 or IP68 housings.

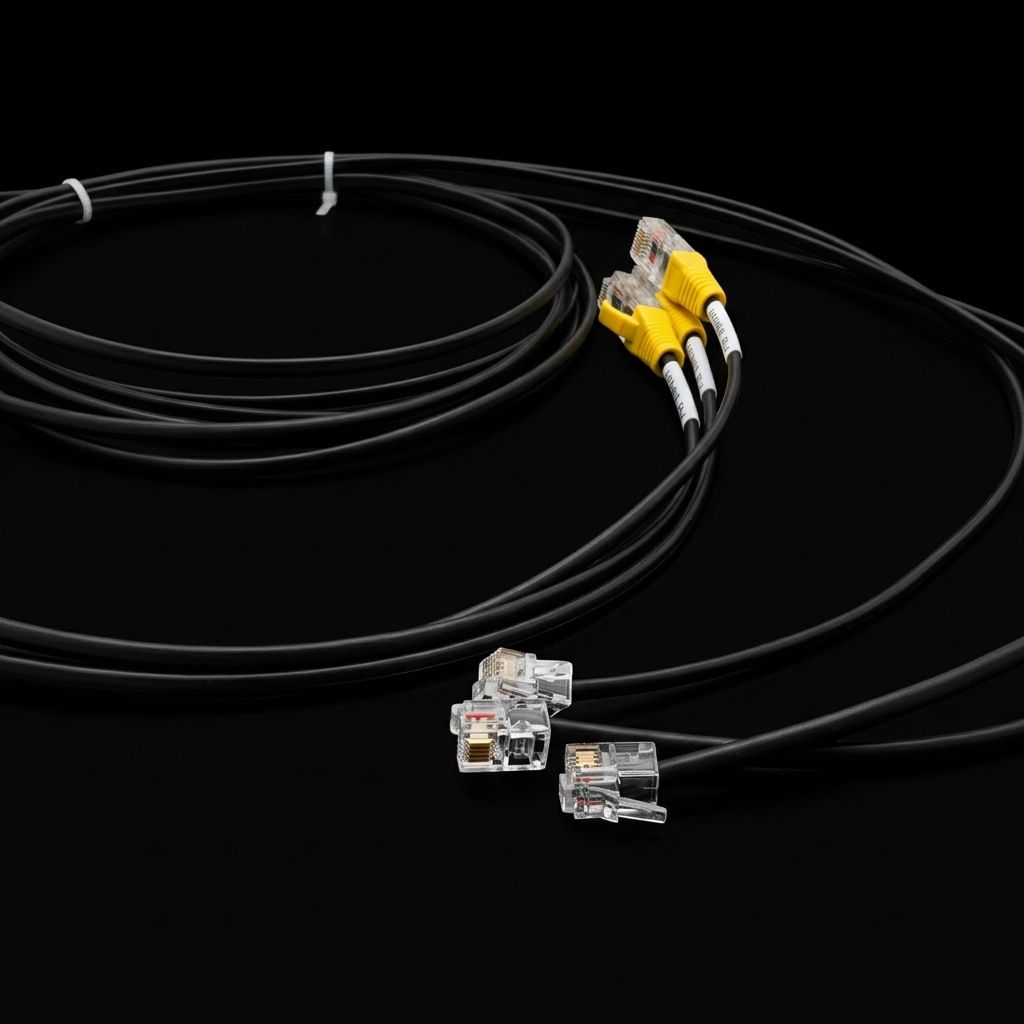

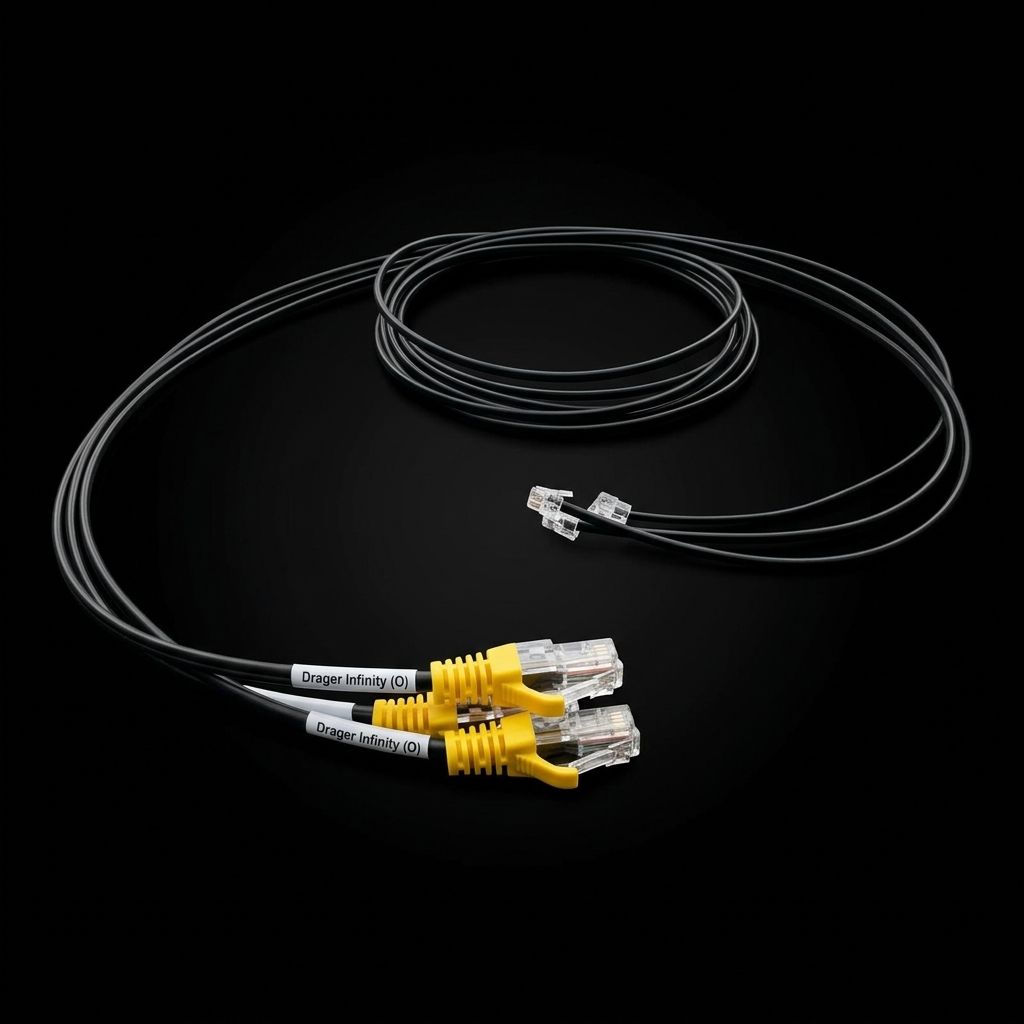

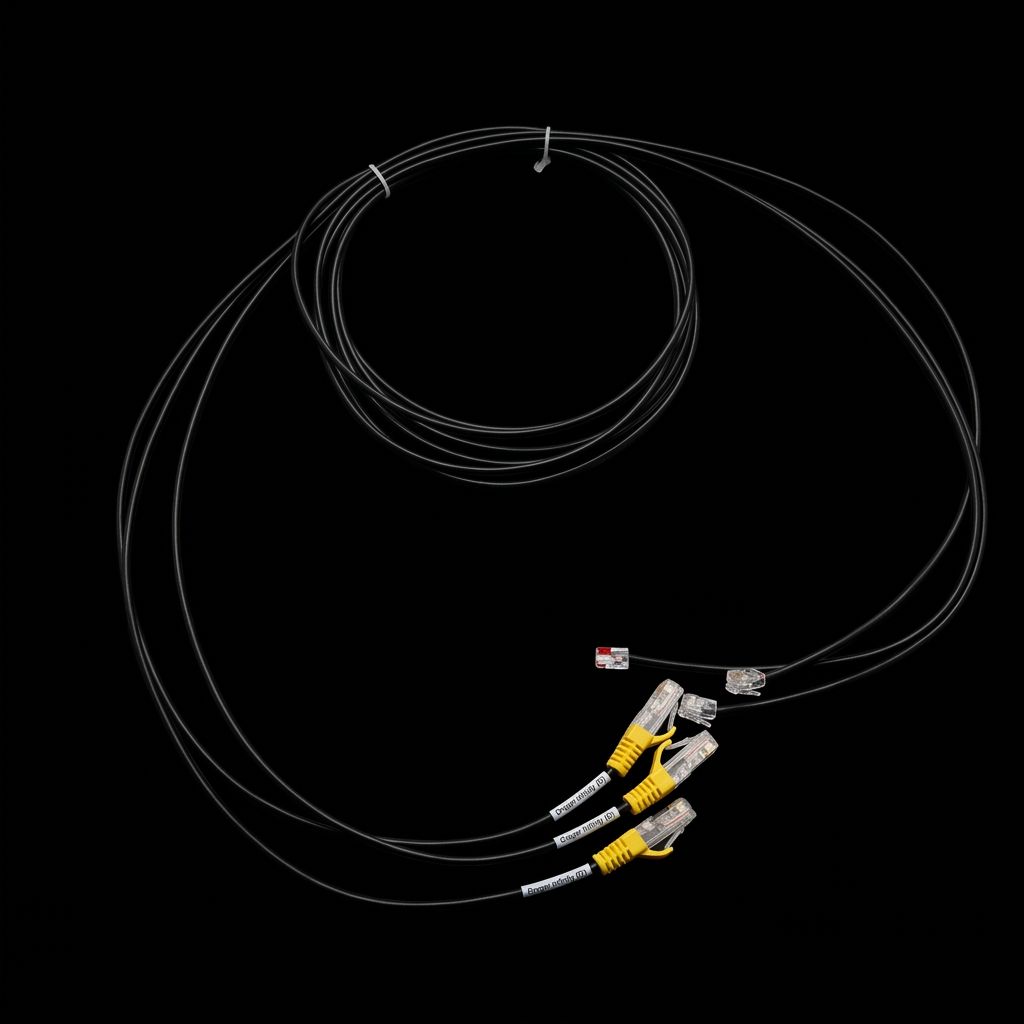

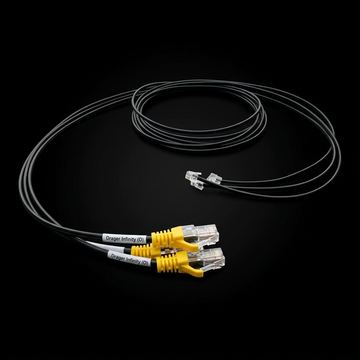

RJ11 and RJ12 (6P4C and 6P6C)
A smaller 6-position body with 4 or 6 contacts, for legacy serial and modem links, older PLC programming panels and intercom or telecom interface blocks.
RJ9, RJ10 and RJ22 (4P4C)
A small 4-position, 4-contact plug for handset and headset connections on industrial intercoms, crane operator pendants and test equipment.
Ensam 315 and Bulgin

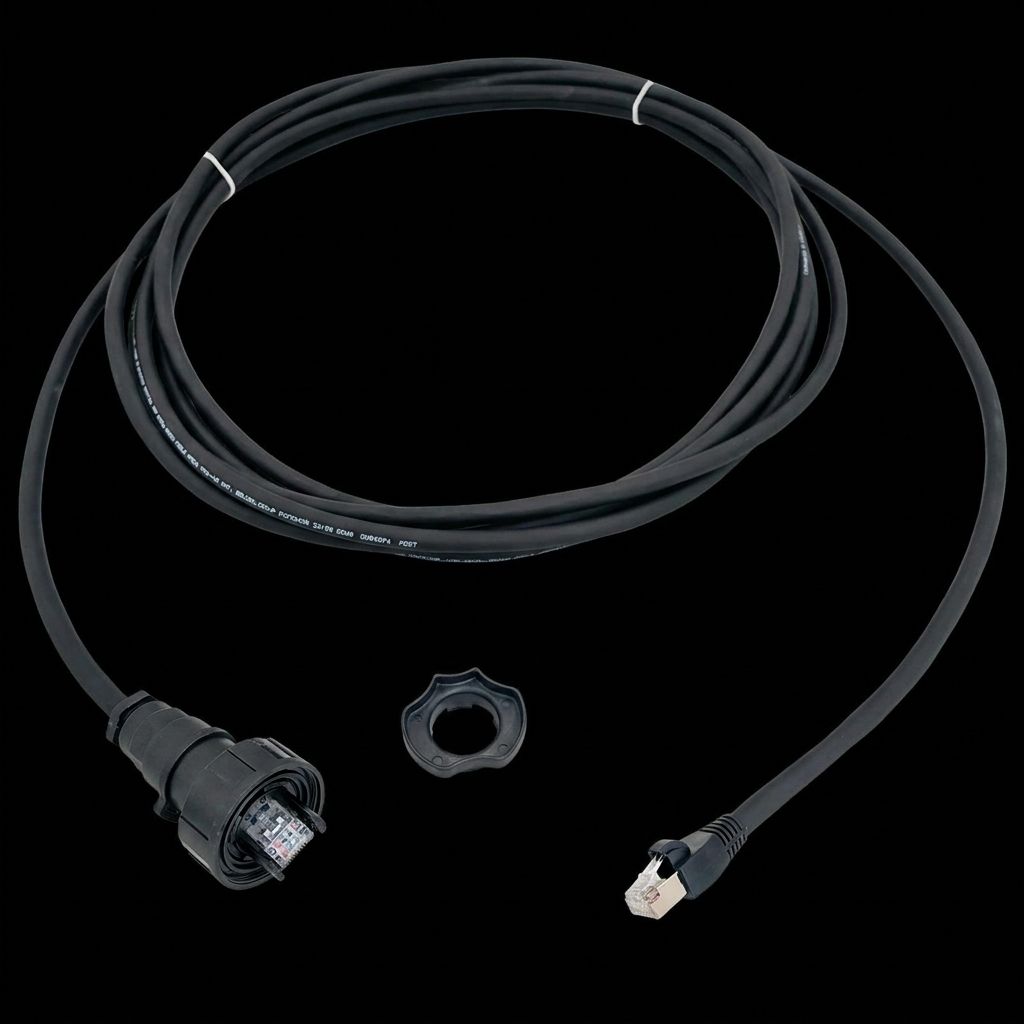

Ensam 315 assemblies built to specification, and Bulgin IP68 rated assemblies for wet and exposed environments.
Testing and documentation
Every assembly is individually tested before despatch.
Ordering
We build to order for businesses and individual customers, from a single assembly upwards. Trade partners can have assemblies labelled to their own scheme.
Typical applications
Military and defenceMaritimeOil and gasTelecommunications
Need it for something else? Tell us what you need, we can probably make it.
