Mini Mil Tac™ deployable fibre
An extremely rugged, lightweight non-metallic deployable fibre cable developed by QAD Networks.
3.4 mm outer diameterNon-metallic1 m to 1 km
Fibre optic
Specifications
| Fibre count | 1 to 4 fibres |
|---|---|
| Outer diameter | 3.4mm, lightweight design saves space and weight in transit |
| Construction | Non-metallic, tight construction, bonded Kevlar, PUR outer jacket |
| Fibre | Singlemode and multimode, all bend insensitive |
| Resistance | Oils, grease, abrasion, fibre creepage |
| Assembly lengths | Made to order from 1m to 1km |
| Deploy reel | Non-metallic rubber reel, available in a range of sizes, lightweight and oil resistant |
Key benefits
- Lightweight 3.4 mm design saves space and weight in transit.
- Resists oils, grease, abrasion and fibre creepage.
- Bend-insensitive singlemode and multimode fibre.
- Supplied on lightweight, oil-resistant non-metallic reels.
Photos

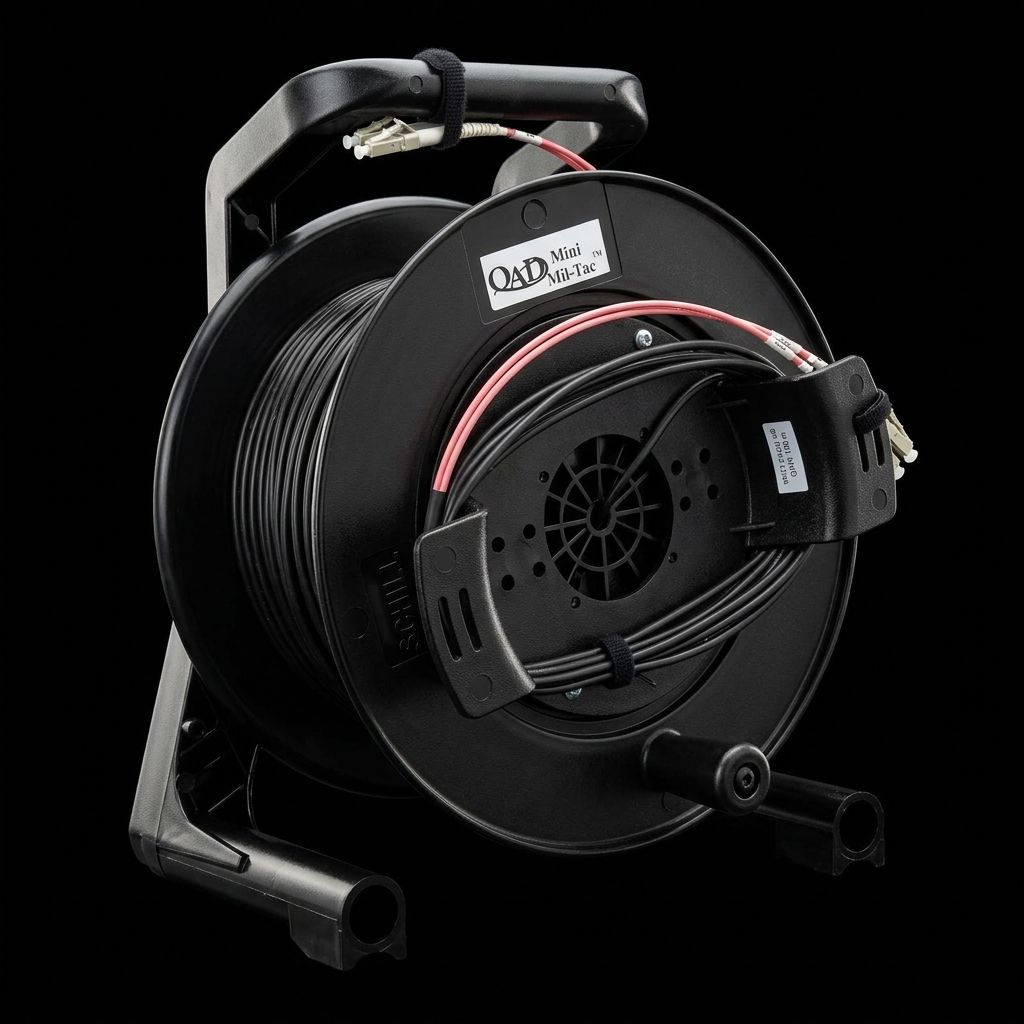

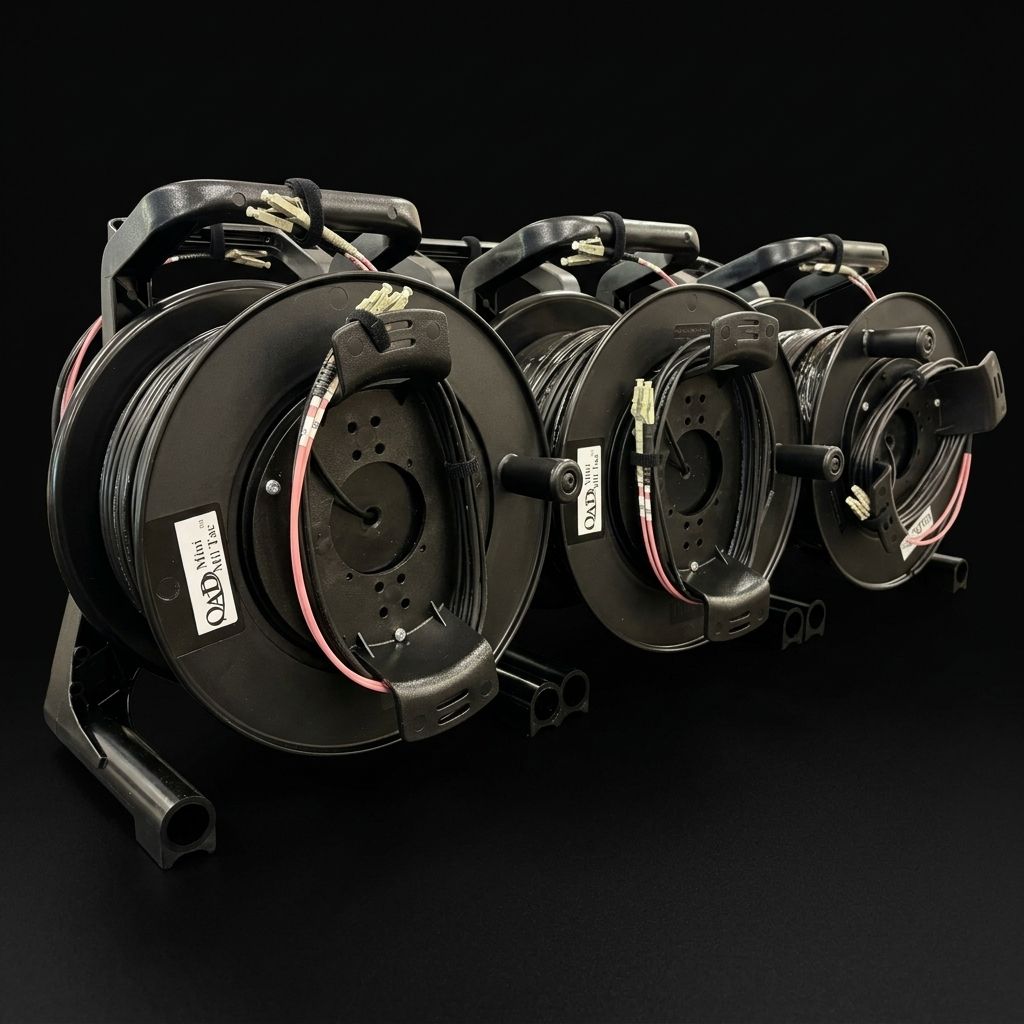

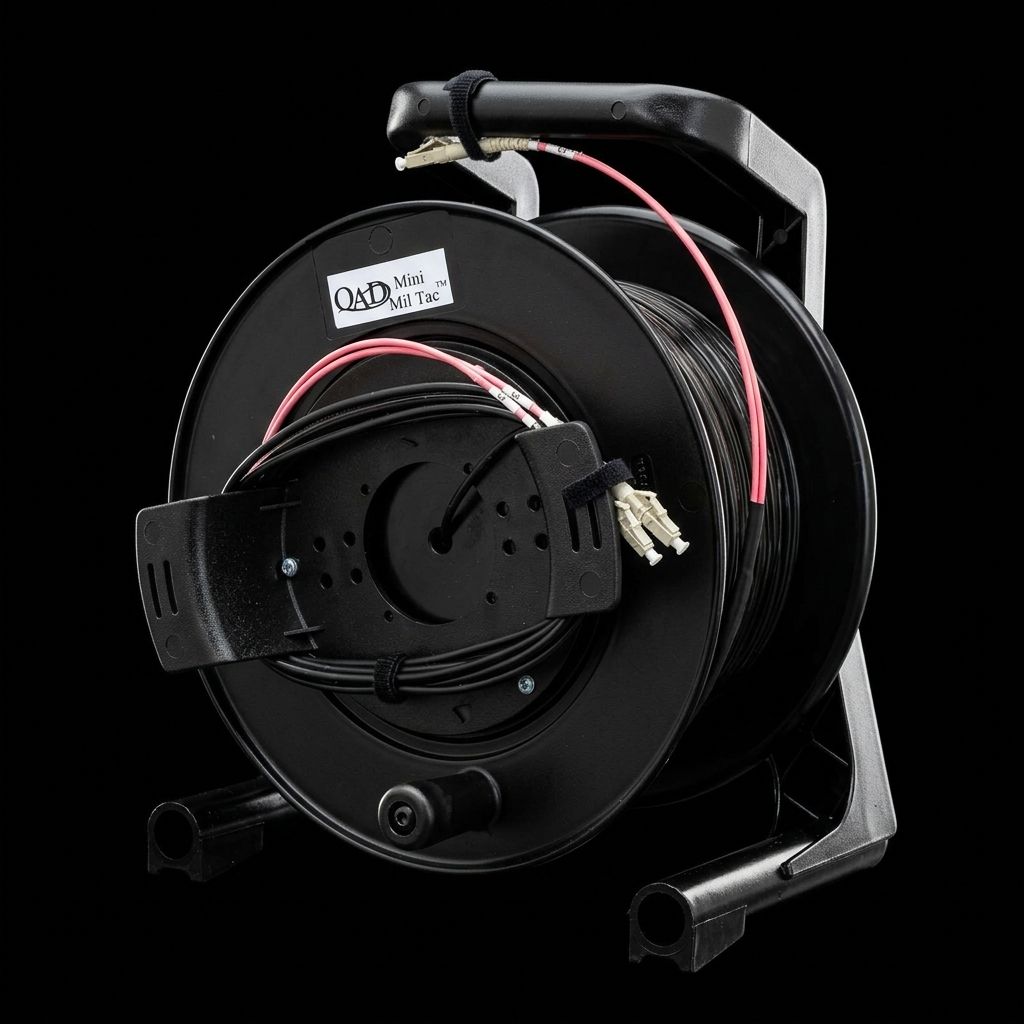

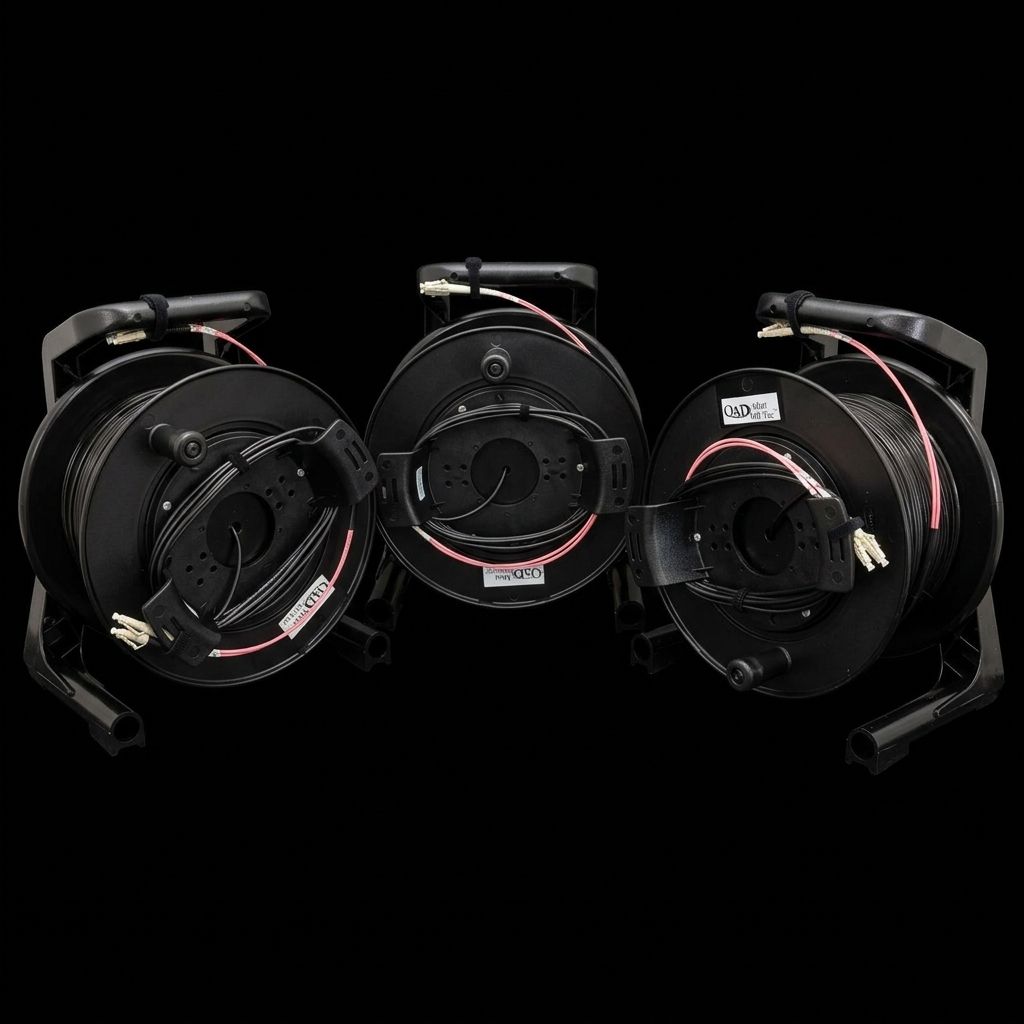

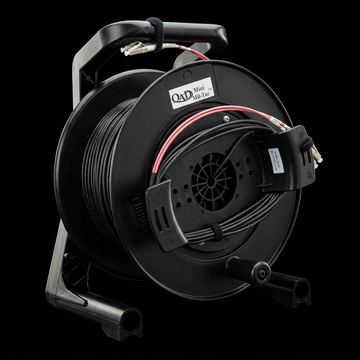

Mini Mil Tac™ is an extremely rugged non-metallic deployable cable developed by QAD Networks. It carries 1 to 4 tight-buffered optical fibres surrounded by aramid yarn strength members and bonded Kevlar to prevent fibre creepage, with a tough polyurethane outer jacket resistant to oils, grease and abrasion.
Options and customisation
Assemblies are made to order from 1 m to 1 km and supplied on non-metallic rubber deploy reels in a range of sizes.
Testing and documentation
Every assembly is individually factory tested before despatch.
Ordering
We build to order for businesses and individual customers, from a single assembly upwards. Trade partners can have assemblies labelled to their own scheme.
Typical applications
Military and defenceBroadcast and mediaEvents and entertainmentOil and gas
Need it for something else? Tell us what you need, we can probably make it.
