Coaxial connectors
50 Ω and 75 Ω RF connectors for cable, panel and PCB mounting, from compact types to SMA, BNC and N-type.
50 Ω and 75 ΩCable, panel and PCBSMA, BNC, N-type
Coaxial
Specifications
| Impedance | 50 Ω and 75 Ω |
|---|---|
| Types | Compact RF connectors through to SMA, BNC, N-type and F-type |
| Mounting | Cable mount, panel mount and PCB mount |
| Support | Help selecting the right connector for your cable, panel or PCB design |
Key benefits
- One source for connectors and the assemblies built with them.
- Cable, panel and PCB mounting options.
- Help choosing the right connector for your design.

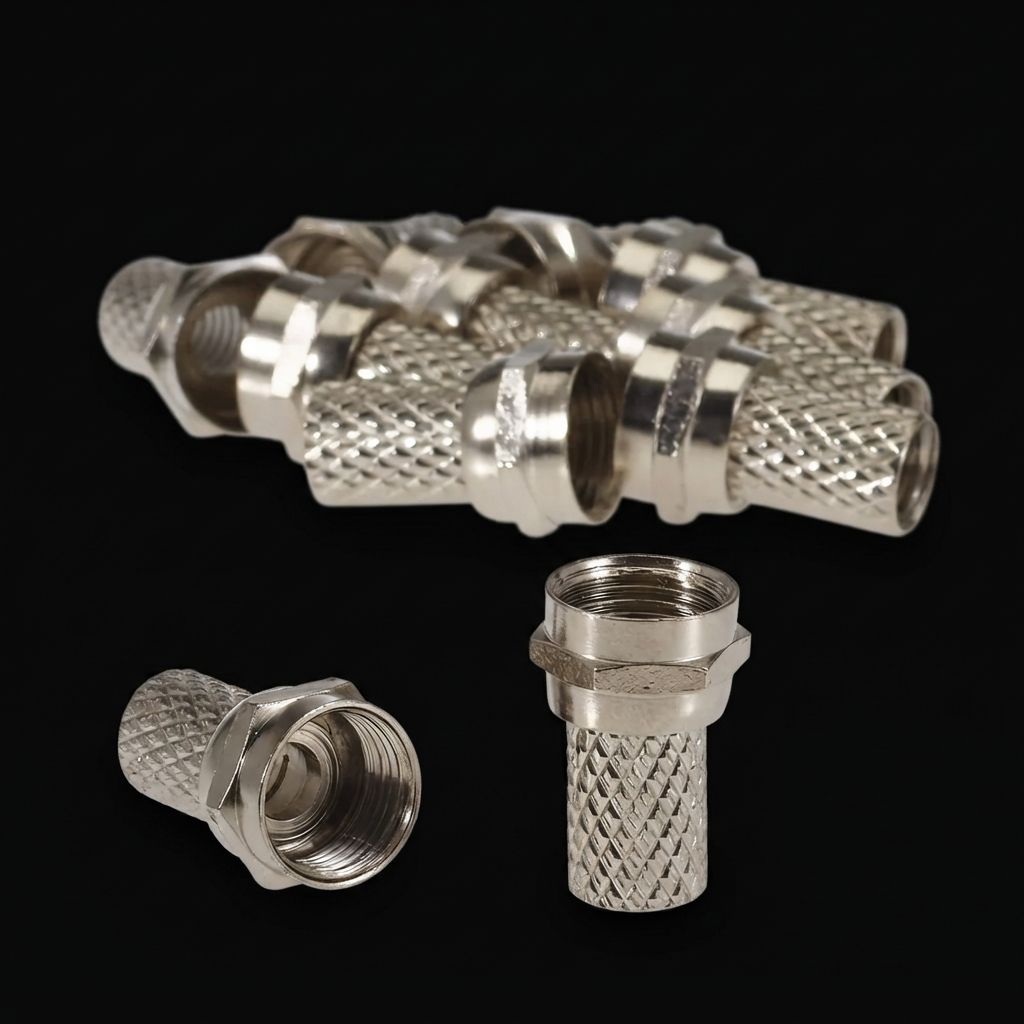

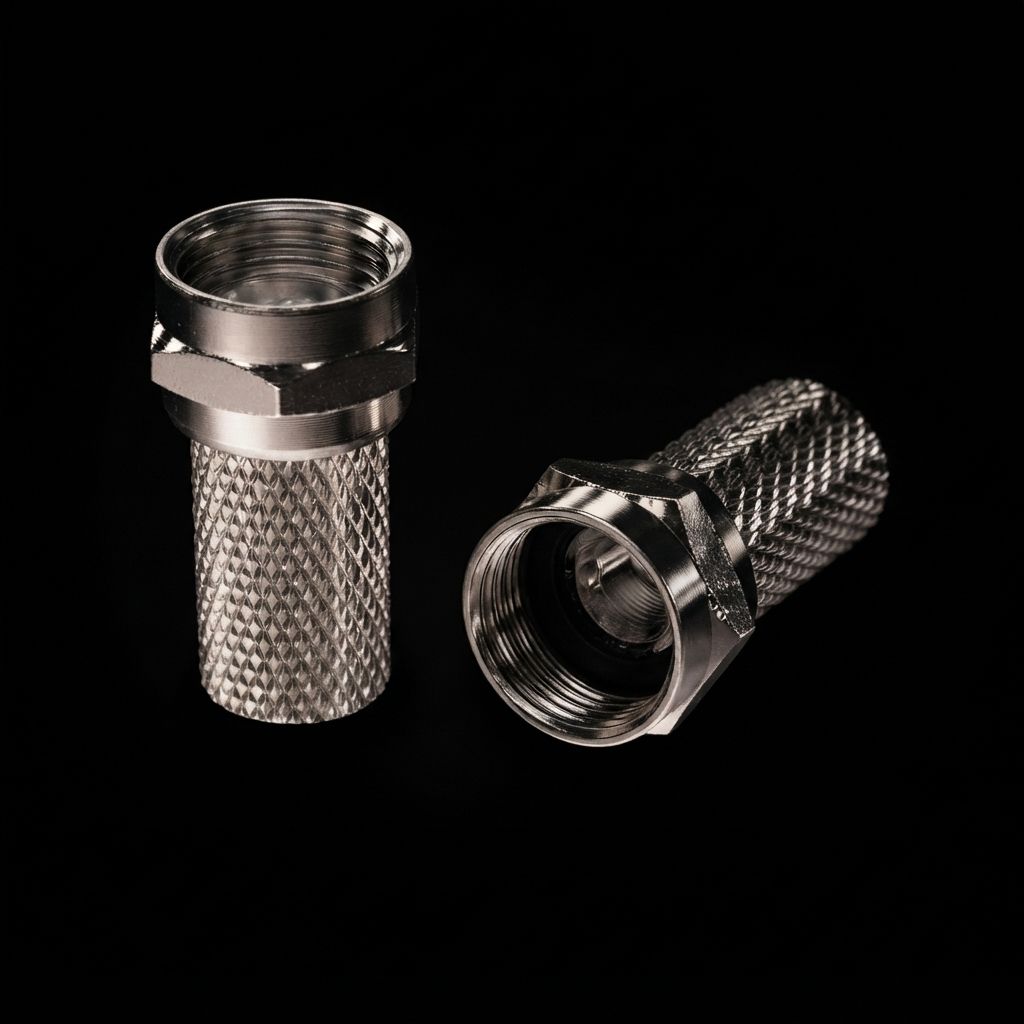

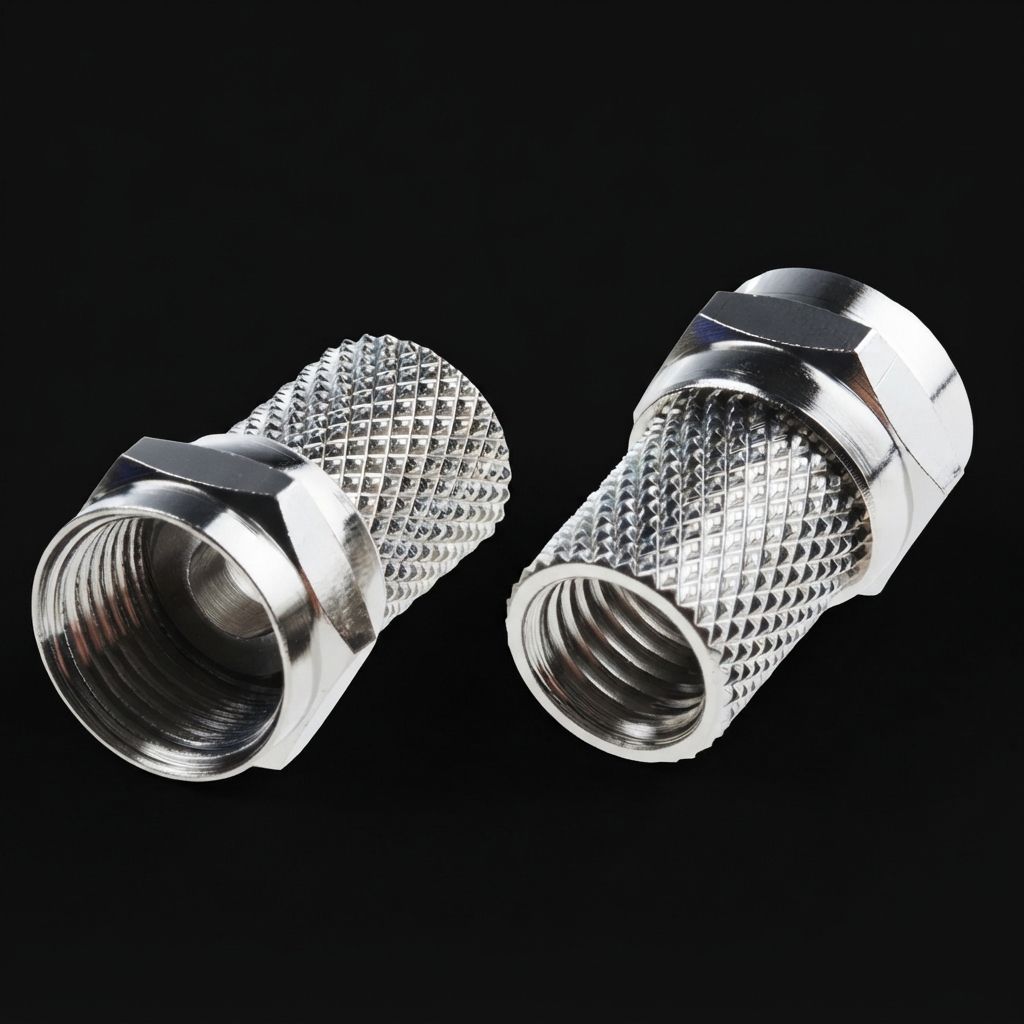

Photos
We supply 50 Ω and 75 Ω RF coaxial connectors for a wide range of applications, from compact connectors for space-limited designs to widely used SMA, BNC and N-type connectors.
Whether you need a cable-mounted connector, a panel-mount solution or a PCB connector, tell us what you are connecting and we will help you find the right part. We can also build the complete coaxial assembly for you.
Choosing a connector
Let us know the cable, the impedance, how the connector will be mounted and the environment it will work in. Our team will help you select the most suitable connector for your cable, panel or PCB design.
Ordering
Contact us with your requirement and quantities, or request a quote. We supply businesses and individual customers.
Typical applications
Broadcast and mediaTelecommunicationsMilitary and defence
Need it for something else? Tell us what you need, we can probably make it.
